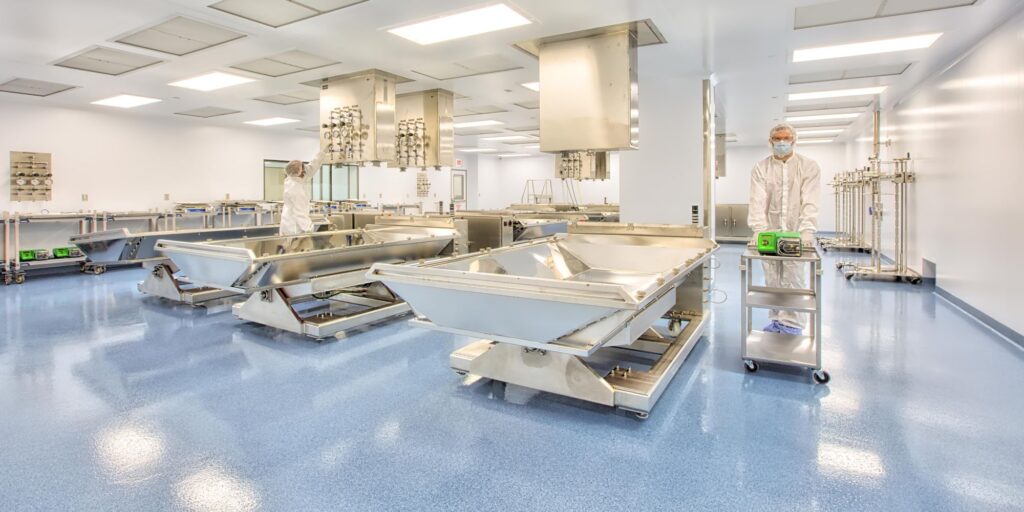

CLEAN ROOM WITH EQUIPMENT
“Experience unmatched quality and innovation with ICETON premium clean room equipment.”
YOUR TRUSTED SOURCE FOR PREMIUM CLEAN ROOM EQUIPMENT
We specialize in providing tailored solutions for clean rooms in the pharmaceutical, biotech, hospital, microelectronics, semiconductor, and laboratory sectors. Our exceptional track record showcases our commitment to crafting high-quality, purpose-built equipment.
WHY CHOOSE ICETON CLEAN ROOM EQUIPMENT?
Longevity and User-Friendly Features: Our equipment is renowned for its durability and ease of use, ensuring long-term, hassle-free operation. The sleek and compact designs not only enhance functionality but also add to the aesthetic appeal of your clean rooms.
Commitment to Innovation: We constantly introduce unique features and cutting-edge technology, setting our products apart from the competition. Our focus on innovation ensures that you receive the most advanced and efficient solutions available.
Trust ICETON for tailored solutions and seamless integration, ensuring optimal performance and client satisfaction.
HORIZONTAL LAMINAR AIR FLOW UNITS
We specialize in providing tailored solutions for clean rooms in the pharmaceutical, biotech, hospital, microelectronics, semiconductor, and laboratory sectors. Our exceptional track record showcases our commitment to crafting high-quality, purpose-built equipment.
Key Features:
- Class 100 working area with laminar airflow
- Easy-change pre-filter for hassle-free maintenance
- Rolled edge on work surface for added convenience
- Quality spare parts ensure reliable performance.
| Model | IAFI/HLAF/222 IAFI/HLAF/322 IAFI/HLAF/422 IAFI/HLAF/522 IAFI/HLAF/622 |
| Working Height | 2' x 2' x 2' 3' x 2' x 2' 4' x 2' x 2' 5' x 2' x 2' 6' x 2' x 2' |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Stand | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| HEPA Filters | EU-14 Grade (99.997% down to 0.3 Micron) HEPA With DOP Port Door / Sash Door vertical Folding Type. |
| Working Table Top | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Air Velocity | ≥0.5m/s |
| Noise Level | 65-70Dba |
| Table Side Wall | Two layer toughen glass, 4mm thickness Side wall views/ Double Skin Panel |
| Air cleanliness | Particle counts exceeds class 100 requirements as per ISO-14644&IEST-RP-CC001.3 |
| Face Velocity | Face velocity of HEPA is adjustable from 90+-20 FPM |
| Electrical Fittings | Electrical Sockets & MCB Switch Illumination Fluorescent Lamp or UV Lamp |
| Optional accessories | Caster wheels / Digital/Analog Pressure Gauges / Leveling Legs / S.S Gas Cock / Hours Meters / Extra Clear Front Door (Acrylic) Touch Screen Panel With Live Status |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor Blower / ON/OFF Switch for Fluorescent Light & U.V. Light Additional power point included 15/5 Amps switch socket combine |
VERTICAL LAMINAR AIR FLOW UNITS
Elevate your laboratory and hospital environments with our Vertical Laminar Air Flow Units, crucial for achieving class 100 airflow. Designed with an open frontal area to allow unrestricted access, these units are tailored for laboratories, pharmaceutical spaces, testing units, manufacturing, and inspection centers. Experience a sterile environment devoid of dust or bacteria, as our Vertical Laminar Airflow workstations are customizable to suit your specific requirements.
Key Features:
- Class 100 working area with laminar airflow
- Easy-change pre-filter for seamless maintenance
- Rolled edge on work surface for added convenience
- Available as hanging or stand-alone units
- Customized sizing tailored to your specific space.
| Model | IAFI/VLAF/32 IAFI/VLAF/33 IAFI/VLAF/42 IAFI/VLAF/43 IAFI/VLAF/44 |
| Working Height | 3' x 2' 3' x 3' 4' x 2' 4' x 3' 4' x 4' |
| Model | IAFI/VLAF/53 IAFI/VLAF/54 IAFI/VLAF/55 IAFI/VLAF/63 IAFI/VLAF/67 |
| Working Height | 5' x 3' 5' x 4' 5' x 5' 6' x 3' 6' x 7' |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Stand | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| HEPA Filters | EU-14 Grade (99.997% down to 0.3 Micron) HEPA With DOP Port Door / Sash Door vertical Folding Type. |
| Working Table Top | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Air Velocity | ≥0.5m/s |
| Noise Level | 65-70Dba |
| Side Wall | PVC Curtain / Polycarbonate Sheet |
| Air cleanliness | Particle counts exceeds class 100 requirements as per ISO-14644&IEST-RP-CC001.3 |
| Face Velocity | Face velocity of HEPA is adjustable from 90+-20 FPM |
| Electrical Fittings | Electrical Sockets & MCB Switch Illumination Fluorescent Lamp or UV Lamp |
| Optional accessories | Stand / Hanging Type / Digital/Analog Pressure Gauge / Filters Blocked Alarm (Audible and visible) / High Pressure/Low pressure indication with alarm for HEPA / Vinyl / Plastic Curtain / S.S Flat/Perforated table / Touch Screen Panel With Live Status /C.G Screen for HEPA Filter / Low pressure Sodium vapor lamp / S.S Perforated sheets for HEPA Filters protection / Explosion proof electrics for Flame proof application. / Audio / Visual alarm for blower tripping with Fault Acknowledgement & Reset Switch. Clean Down Timer with Operation Hold Indicator & Indication for Healthy condition. |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light. |

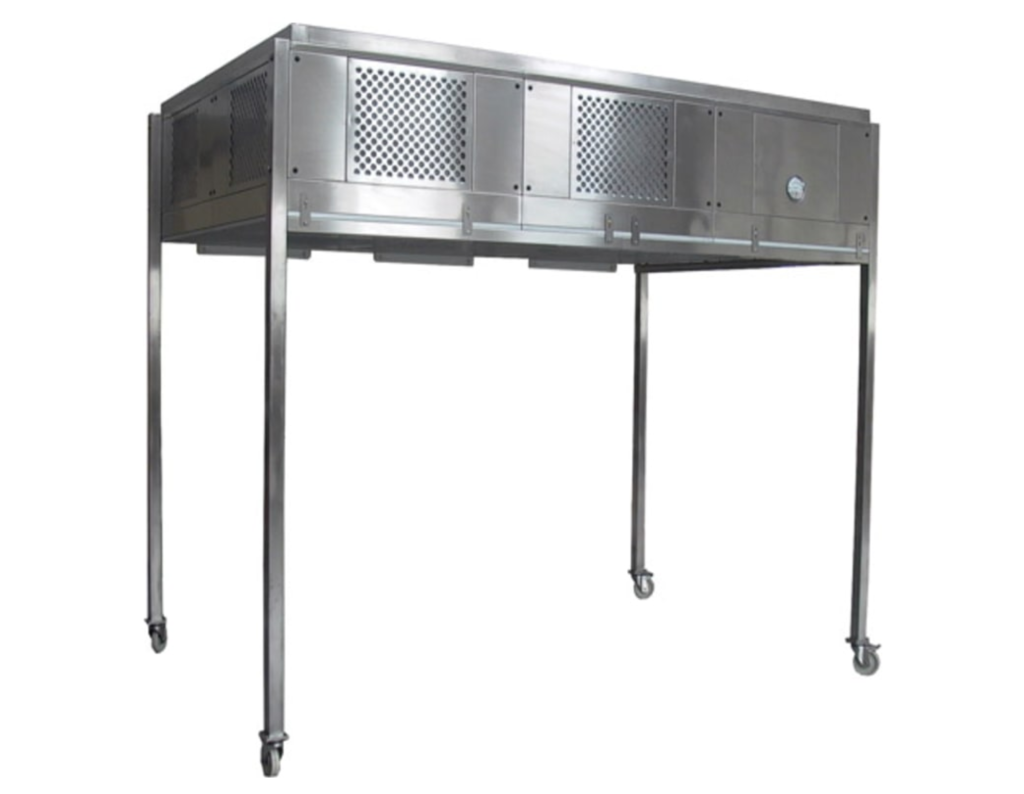

REVERSE LAMINAR AIR FLOW UNITS
Introducing our Reverse Laminar Air Flow Units, providing pristine environments for laboratories, testing areas, or hospitals, ideal for activities such as weighing, sampling, and large-scale sampling. These units effectively control hazardous powder emissions, vapor, or dust during drum tipping, dispensing, or product sampling, ensuring operator safety and environmental integrity.
Key Features:
- Class 100 working area with laminar airflow
- Easy-change pre-filter for seamless maintenance
- Rolled edge on work surface for added convenience
- Suitable for on-floor and table balance accommodation
- Customized sizing to suit your specific area.
| Model | IAFI/DPB/222 IAFI/DPB/322 IAFI/DPB/332 IAFI/DPB/433 IAFI/DPB/444 |
| Working Height | 2'x 2' x 2' 3'x 2' x 2' 3'x 3' x 2' 4'x 3' x 3' 4'x 4' x 4' |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Stand | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Door | Sandwich type PUF insulated |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| HEPA Filters | EU-14 Grade (99.997% down to 0.3 Micron) HEPA With DOP Port Door / Sash Door vertical Folding Type. |
| Air Velocity | ≥0.5m/s |
| Noise Level | 65-70dBA |
| Air cleanliness | Particle counts exceeds class 100 requirements as per ISO-14644&IEST-RP-CC001.3 |
| Face Velocity | Face velocity of HEPA is adjustable from 90+-20 FPM |
| Glass | Window Two layer toughen glass, 5mm thickness |
| Electrical Fittings | Fluorescent Lamp or UV Lamp |
| Optional accessories | Stand for expose side support / Mechanical Inter lock / UV Lamp / Flush Sheet for Wall or panel cover |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light. |

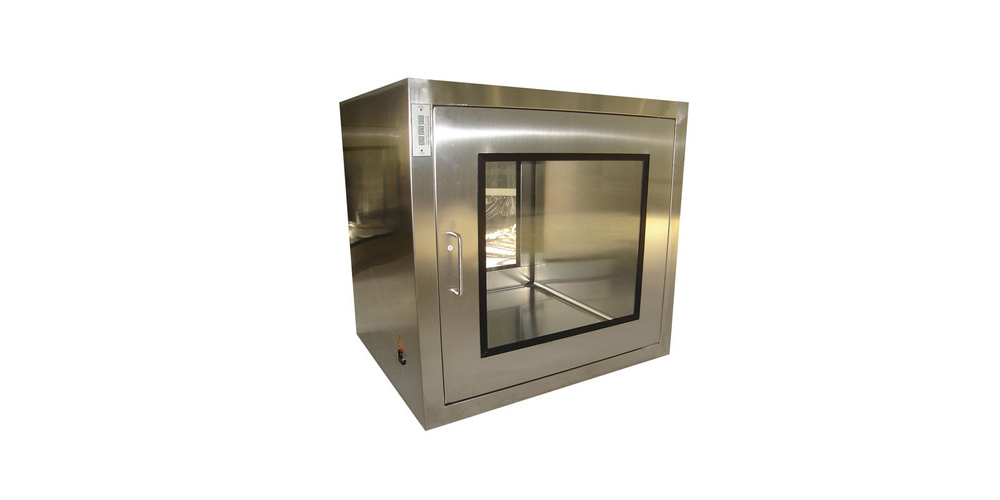

PASS BOX
Introducing our Pass Box – the essential equipment for seamless material transfer between areas, preventing cross-contamination with an electromagnetic door interlocking system. Designed to ensure only one door opens at a time, it effectively maintains the sterility of each compartment, offering both dynamic and static pass-
| Model | IAFI-BSC-2 IAFI-BSC-3 BSC-4 IAFI-BSC-5 IAFI-BSC-6 |
| Working Height | 2Ft. 3Ft. 4Ft. 5Ft. 6Ft. |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Door | Door vertical Folding Type. |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| Air Velocity | ≥0.3m/s |
| Noise Level | 65-70dBA |
| Side Wall | Polycarbonate Sheet, / Two layer toughen glass, 5mm thickness, Motor Control, height adjustable |
| Face Velocity | The velocity of the air passing through the work opening of the fume hood measured in the plane of the door. Measured in feet per minute (fpm), or liters per minute. |
| Electrical Fittings | Electrical Sockets & MCB Switch |
| Optional accessories | Perforated Grills / Vacuum Tap / Canopy with exhaust connection / Temperature indicator / Stand with rolling caster |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light. |

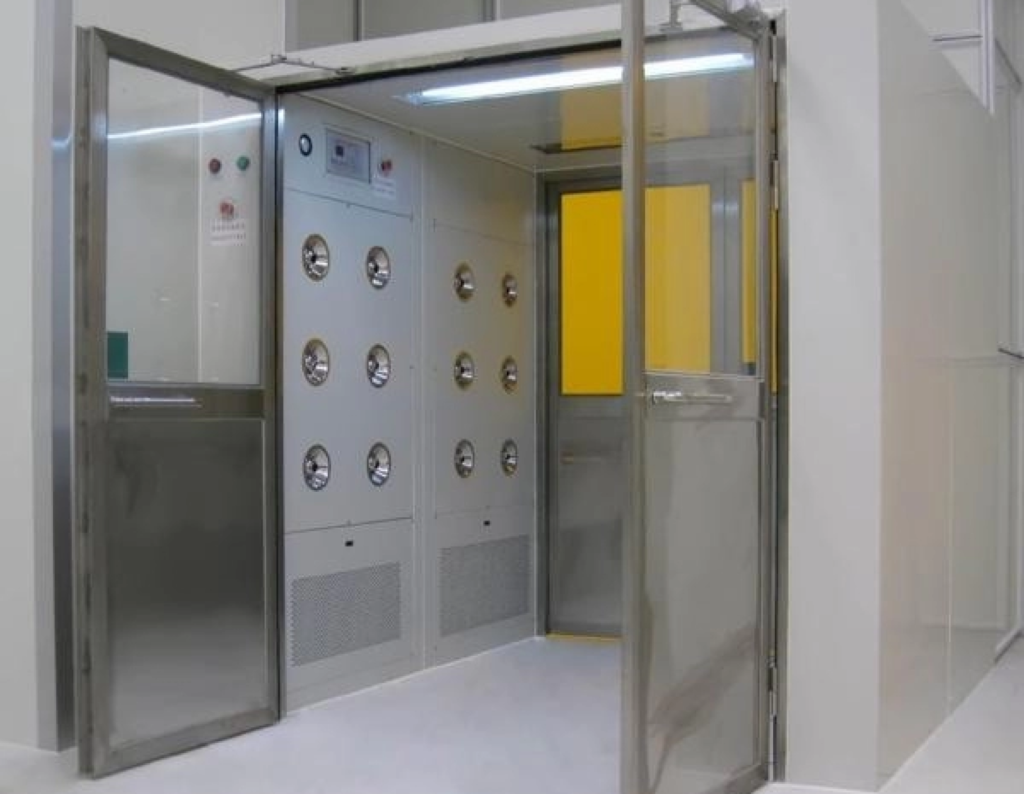

AIR SHOWER
Introducing our Air Showers – designed for the efficient movement of both equipment and personnel between areas, ensuring optimal cleanliness. High-velocity sterile air is employed to cleanse equipment and personnel, effectively removing dust particles from the process.
Key Features:
- Class 100 ISO 14644-1 and 2 compliant design
- Double-wall construction for enhanced durability
- Rolled edge on work surface for added convenience
- High velocity and air volume for efficient jet air cleaning
- Microprocessor-controlled cycle times for precision
- Electro Magnetic interlocks for secure operation
- Easy service/main
| SINGLE PERSON ENTRY , DOUBLE PERSON ENTRY | |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Stand | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Door | Sandwich type / Single Skin / Aluminum Extruded |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| HEPA Filters | EU-14 Grade (99.997% down to 0.3 Micron) HEPA With DOP Port Door / Sash Door vertical Folding Type. |
| Air Velocity | Jet Nozzle with Approximately 5000 CFM |
| Noise Level | 75-80dBA |
| Air cleanliness | Particle counts exceeds class 100 requirements as per ISO-14644&IEST-RP-CC001.3 |
| Glass Window | Window Two layer toughen glass, 5mm thickness |
| Optional accessories | UV Lamp / Flush Sheet for Wall or panel cover, touch screen panel |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light, Door interlock Systems |
BIOSAFETY CABINET
Discover our Biosafety Cabinets, advanced recirculation laminar airflow enclosures, highly efficient in HEPA air filtration. The HEPA-filtered vertical laminar airflow creates an ultra-clean environment for diverse operations, maintaining a barrier between the work zone and the operator. The barrier air, mixed with laminar airflow, is directed outside through a HEPA filter and an optional virus burnout.
Key Features:
- Class 100 ISO 14644-1 and 2 compliant design
- Double-wall construction for enhanced durability
- Rolled edge on work surface for added convenience
- Vertical or horizontal sliding sash for flexible use
- Durable and chemical-resistant construction
- Comfortable working table for ergonomic operations
EXPLORE OUR BIOSAFETY CABINET CLASS 2 TYPES:
Type B1: Exhausts 60% – 70% of HEPA-filtered air, with 30% – 40% air recirculated inside the workspace through a HEPA filter.
Type B2: Total exhaust type, with no recirculation inside the workspace; blower exhausts 100% of the filtered air.
Type A2: Approximately 70% of HEPA-filtered air is circulated through the cabinet, while 30% passes through an exhaust HEPA filter and is discharged.
| Model | IAFI-BSC-2 IAFI-BSC-3 BSC-4 IAFI-BSC-5 IAFI-BSC-6 |
| Working Height | 2Ft. 3Ft. 4Ft. 5Ft. 6Ft. |
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Door | Door vertical Folding Type. |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| Air Velocity | ≥0.3m/s |
| Noise Level | 65-70dBA |
| Side Wall | Polycarbonate Sheet, / Two layer toughen glass, 5mm thickness, Motor Control, height adjustable |
| Face Velocity | The velocity of the air passing through the work opening of the fume hood measured in the plane of the door. Measured in feet per minute (fpm), or liters per minute. |
| Electrical Fittings | Electrical Sockets & MCB Switch |
| Optional accessories | Perforated Grills / Vacuum Tap / Canopy with exhaust connection / Temperature indicator / Stand with rolling caster |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light. |

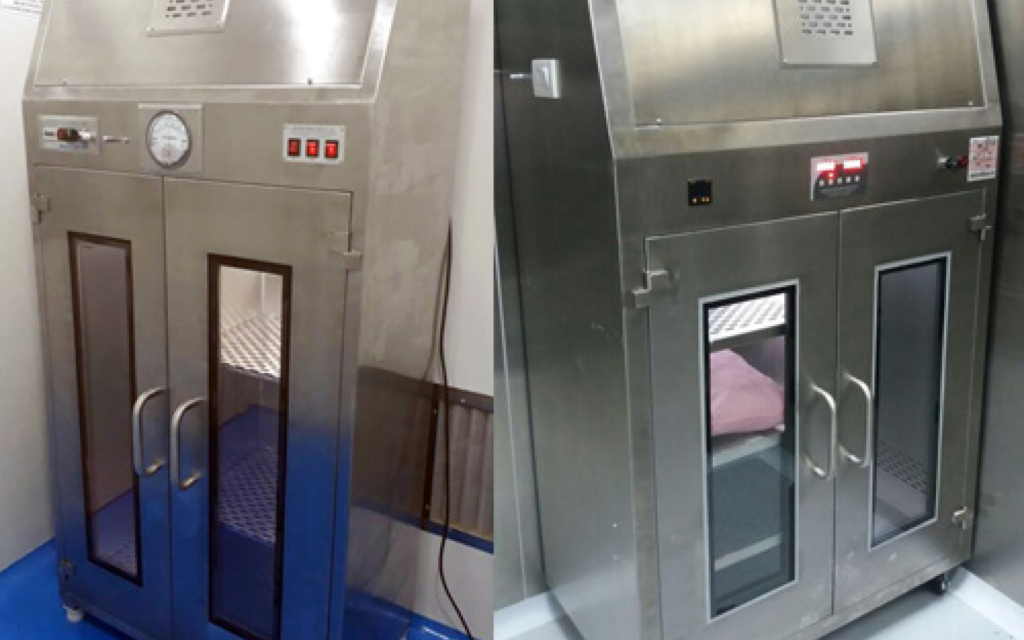

GARMENTS CUBICLES
Explore our Garments Cubicles designed for storing garments in clean and controlled environments, ensuring dust-free conditions. Specifically crafted to prevent particulate contamination, these cubicles are essential for maintaining garment quality, especially between laundry washes. Our general model, standing at 6 feet, can typically hold an average of 24 garments, though the actual capacity depends on how tightly they are packed. Optimize garment care in controlled areas with our specialized cubicles.
| M.O.C | S.S 304/316 Matt fish, CRCA/GI 18G Powder Coated |
| Door | Sandwich type / Single Skin |
| Fan and Motor | Dynamically & Statically balanced Blower for less vibration & noise level. High Efficiency drive motor. |
| Pre Filters | EU-6 Rating (Eff-95% down 5 Micron) |
| HEPA Filters | EU-14 Grade (99.997% down to 0.3 Micron) HEPA With DOP Port Door / Sash Door vertical Folding Type. |
| Air Velocity | ≥0.5m/s (Only for Dynamic) |
| Noise Level | 65-70dBA |
| Air cleanliness | Particle counts exceeds class 100 requirements as per ISO-14644&IEST-RP-CC001.3 |
| Glass window | Window Two layer toughen glass, 5mm thickness / Single skin |
| Optional accessories | Stand for expose side support / Mechanical Inter lock / UV Lamp / Flush Sheet for Wall or panel cover |
| Electrical | 230V, Single Phase, 50Hz / ON /OFF Switch & indicator for Motor BloweR / ON/OFF Switch for Fluorescent Light & U.V. Light. |

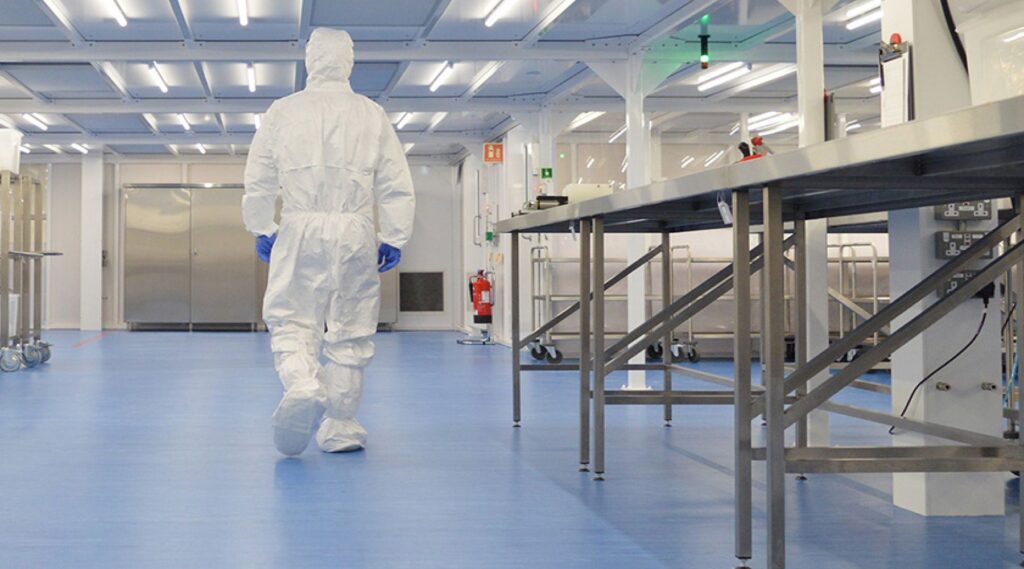

CLEAN ROOM S.S FURNITURE’S
Elevate your cleanroom environment with our specialized Cleanroom Furniture, meticulously designed to meet the stringent requirements of controlled spaces. Our furniture combines functionality, durability, and cleanliness, adhering to the highest industry standards.
Our user-friendly, durable, and aesthetically pleasing equipment sets new standards in clean room technology.
